Micro Kjeldahl Distillation Unit Manufacturers, Micro Kjeldahl Distillation Unit Suppliers India

Micro Kjeldahl Distillation Unit India
  • Micro Kjeldahl Distillation Unit Manufacturers

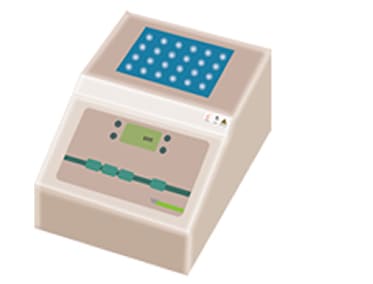

MICRO KJELDAHL DISTILLATION UNIT (ACM-54096- W)

The equipment has a very heavy casted top made of high grade stainless steel block of grade SS-304 with room for heating 40 digestion tubes made of highly energy efficient borosilicate glass of 75 ml each. The suitable value heating element are made of high grade kanthal A-I non magnetic wire. These heaters are strategically placed throughout the chamber for uniform temperature distribution through the chamber. The outer casing of the equipment id made of thick PCRC sheet duly pre treated with primers for rust proofing and painted with attractive stove enamel paint or powder coated. The 75mm gap between the two walls is filled with mineral wool to have minimal thermal loss and maximum energy efficiency.

  • TEMPERATURE RANGE
  • TEMPERATURE CONTROL
  • TEMPERATURE SENSTIVITY
  • CONTROL PANEL
  • STANTDARD MODEL

Temperature Range : 50°C to 350°C

Temperature is controlled through electronic solid state temperature controller cum indicator or micro processor based digital temperature controller cum indicator.

The temperature is controlled with an efficiency of + 2% (Set Value).


The control panel is fitted at the side of the equipment, it comprises of mains on/off switch, neon power indicator light, heater on/off indicator light, digital temperature controller cum indicator.


Model Acm-54096- W -20 T(For 20 tubes)

Model Acm-54096- W -36 T(for 36 tubes)

Equipment supplied with tubes temperature controllers and racks.
