Acmas Technologies Pvt.Ltd.- Test Chamber Manufacturers Suppliers & Exporters

Serological Water Bath India, Serological Water Bath Suppliers

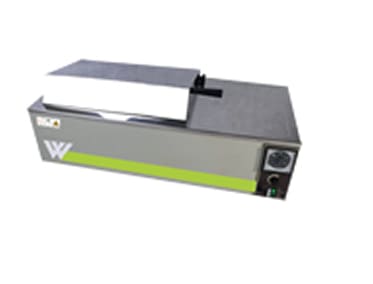

SEROLOGICAL WATER BATH

WEIBER serological water baths are used for clinical procedure, Incubation, Inactivation, Agglutination, as well as most serological pharmaceutical, biomedical procedure, Washerman, Kolmer and Khan Test inactivation's, Paraffin Embedding and many other applications in the laboratories.

We specialize in both standard and customized models, specifically designed to meet the challenging demands of various test areas.

  • SALIENT FEATURES
  • CONSTRUCTION DETAILS
  • TECHNICAL SPECIFICATIONS
  • APPLICATIONS
  • STANDARDS COMPILED
  1. Versatile usage
  2. Ergonomic Design
  3. Energy Efficient
  4. Long life
  5. Low Maintenance
  6. Calibration And Protocol Documentation
  7. PID based temperature controller (HMI+PLC as an option)
  8. Serological Water Bath Manufacturers

  9. Aesthetically designed- Designed according to the standards and principles underlining industry’s aesthetic values.
  10. Corrosion Resistant Interior and Exteriors- Corrosion resistant coatings like epoxy coatings are applied inside and outside the baths to prevent against degradation due to moisture, salt spray, oxidation or exposure to a variety of environmental or industrial chemicals/ corrosive agents.
  11. Energy Efficient – The baths uses less energy to provide the same level of performance, comfort and convenience, thus making it energy conserving.
  12. Sturdy Construction – The baths are built with robustness to withstand stress and strain, giving it long life and ability to perform in extreme stress environments.
  13. Printer report program(optional)
  14. 232/485 interface (optional)
  15. USB ports (optional)
  16. Real time data acquisition system (optional)
  17. profile control(MULTIPLE PROGRAMMING) (optional)
  18. timer (optional)

Serological water baths are double walled convection heated units. Outer body of our water baths are constructed out of SS 304/ PCRC steel sheet (as per request) duly pre-treated with primers for rust proofing and painted with air drying paint/stove enamel/powder coating. The inside chamber of the unit is made of heavy gauge stainless steel sheet of grade ss-304. The unit is provided with top opening cover, made of stainless steel with steel concentric rings.

Heating:

Indirect heating system is provided in our water bath, comprising of air heaters made of high grade Kanthal A-1 wires of suitable wattage. The temperature is evenly distributed throughout the chamber through natural water convection mechanism, ensuring very good temperature sensitivity.

Temperature Range:

Temperature range of our standard water bath models are 5o c above ambient to 90o c. However we have the capacity to modify the same to suit the individual specialized requirements of our customers.

Temperature Sensitivity:

Temperature inside our water bath is controlled with a sensitivity of + 0.5o c or better.

Front Panel:

Front panel of our water bath comprises of on/off switches heating and mains indicator lamps and temperature controller. The unit is fitted with a high efficiency stirrer motor of 1/20 HP, so as to maintain the uniform temperature of our high precision water bath.

L

W

D

RACKS

CAPACITY

300 mm
330 mm
455 mm
605 mm

250 mm
300 mm
300 mm
300 mm

175 mm
175 mm
175 mm
175 mm

(Suitable for 2 racks)
(Suitable for 4 racks)
(Suitable for 6 racks)
(Suitable for 8 racks)

14 Ltrs
18 Ltrs
25 Ltrs
32 Ltrs

The above mentioned sizes are of our standard bath. However we are fully capable to cater to the demand of any customized size for any special application.

Outer construction

PCRC/SS 304

Inner construction

SS 304

Temperature Control



Temperature Sensitivity

± °C

0.5 or better

Spatial Deviation In Temperature

± °C

0.5 or better

Readability

°C

0.1

Temperature range

°C

5°C above ambient to 90°C

Temperature Sensor



PT-100

Temperature Controller



PID controller

Display



LED/LCD

Accessories





Printer Report Program



optional

2 x 24 characters LCD Display



optional

Access Port 30 mm



optional

Power consumption





Nominal power

W

500 -650

Nominal voltage

V

220-230 Volts, 50 Hz Single Phase

Frequency

Hz

50

  1. Serological pharmaceutical, biomedical procedure
  2. Research laboratories
  • ASTM E715-80
  • ASTM F2473-12
  • BS 619:1935
  • BS 4525:1983
  • ISO 759-1981
