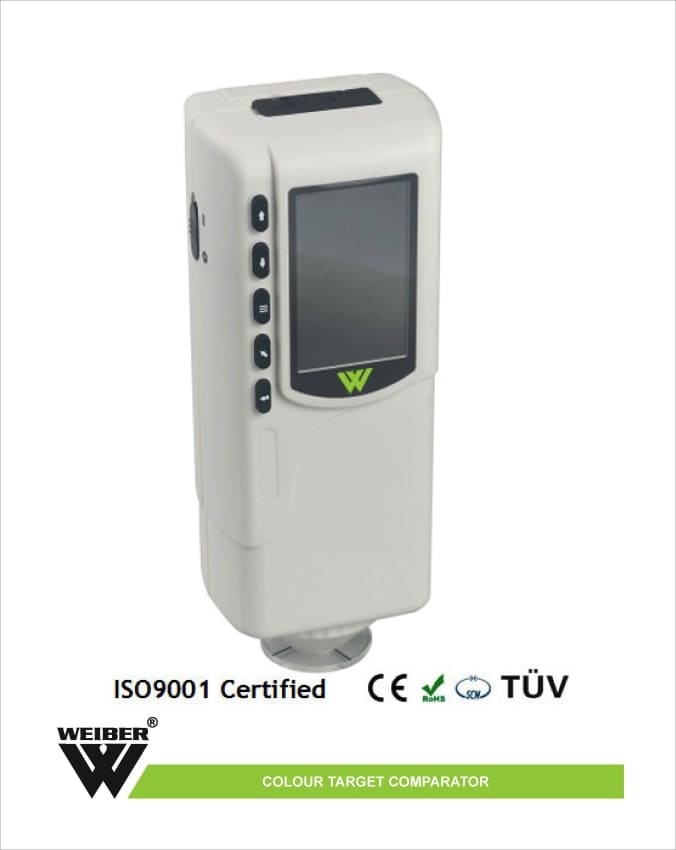

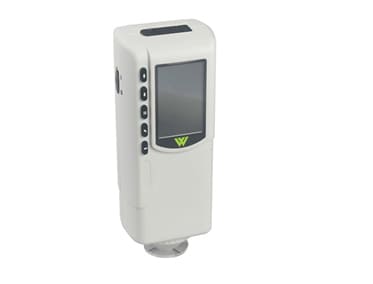

COLOR TARGET COMPARATOR

Color Target Comparator is used for both color and luminance measurring. In 1931, the CIE (Commission International De L’E’clairage) set up a series of visible spectrum color space standards. The basic CIE color space standards are CIE_XYZ. It is built on standard visual observers on the basis of ability to see, and it reflects the standards scope of color by eye. Based on CIE_XYZ there are CIE_XYY, CIE_Lab, CIE_Lch standard color space, etc.

At present, the CIE lab color space is the most commonly used in the industry. In CIE Lab color space, L value stands for color brightness and a value stands for the Green-on-red value, and b value stands for the blue-on-yellow color value. If determine a value of color by only a group Lab, it will be not practical. However, we can determine the differences among them by comparing two groups of Lab values.

  • SPECIAL FEATURES
  • TECHNICAL SPECIFICATIONS
  • Easy operation make you use it easily.
  • Widely applied to quality control of plastic and printing industries’.
  • Display directly color difference by ∆ E*ab, ∆ L*a*b, CIE_L*a*b,CIE_L*c*h
  • Standard deviation within ∆E*ab0.2 (test condition: choose average values by 12pcs white tabula)
  • PC software: CQCS3 software
  • CE, ISO 9001, ROHS, TUV certified
  • 8mm measurement aperture
  • Rechargeable Li-ion battery
  • USB interface
  • Optional mini printer
  • D65 light source
  • 8/d illuminating geometry
  • 0.08 high precision

Test accuracy

Within0.2 ∆ E*ab

Display

∆E*ab, CIE_Lab, ∆L, ∆a, ∆b, CIE_Lch

Test swpe

L: 0-100 a: -128- -127 b: -128- -127

Test time

About 3 seconds.

Test Interval

2 seconds.

Test aperture

8mm

Automatic shutdown

Automatic shutdown after 5 minutes waiting

Light source

C light source

Sensor

Correct silicon photodiode carrays

Power

DC/5V (1.5A) ,2pcs 1.5V (AAA) batteries

Size

171 *50*48. 8mm

Weight

203. 6g (Exclusive battery)

Operated temperature scope

0-400 C (32-1040 f) : lower than 85% relative humidity.

Standard accessories

1pc manual/ softwbag/ 9v battery/5v external power supply/USB

Storage temperature range

connecting cable/cd

Application

Measure any color of smooth surface.
