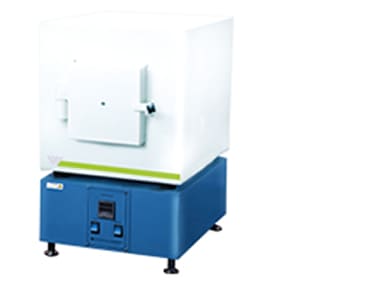

MUFFLE FURNACE

WEIBER a leading Indian manufacturer of muffle furnaces for laboratory use with Temperature range upto 1800°C. As required, we provide both standard and customized muffle furnace systems to our customers worldwide. These laboratory muffle furnace units are utilized in general purpose heating in laboratories, ashing tests on wool, rubber, fibers or fabrics, heat treatment requirements for gears and various research facilities in chemistry and physics.

  • STANDARD FEATURES
  • OPTIONAL ACCESSORIES
  • CONSTRUCTION DETAILS
  • OPERATING PRINCIPLE
  • TECHNICAL SPECIFICATIONS
  • APPLICATIONS
  1. The temperature control unit consists micro-processor based PID controller cum indicator. benefits of using PID controller:
    • Processing speed is high
    • Provides flexibility to alter the system by changing software.
    • Compact in size.
    • Operation and maintenance easier.
    • Maintain precise values
  2. Door options available:
    • Flap door
    • Lift door
    • Front opening door
  3. Available with temperature ranges: 900-1800°C
  4. Heating elements are embedded in the ceramic wall (ONLY UPTO TEMPERATURE OF 1200°C)
  5. Exhaust air outlet at rear wall of the furnace.
  6. Solid state relays provided for low noise protection.
  7. Over temperature limiter.
  8. PCRC sheet body - Powder coated steel body assures corrosion resistant furnace and allows working of chamber at high temperature applications.
  9. Digital output – Target and Performance Output of the furnace operations are in digital format(digits) giving precise reading.
  10. Precise Control of Environmental Parameters-The set/ programmable parameters of thefurnace are precise or have less deviation from original value,thus ensuring correct measurement.
  11. Aesthetically designed-Designed according to the standards and principles underlining industry’s aesthetic values.
  12. Corrosion Resistant interior and exteriors-Corrosion resistant coatings like epoxy coatings are applied inside and outside the furnace to prevent against degradation due to moisture, salt spray, oxidation or exposure to a variety of environmental or industrial chemicals/ corrosive agents.
  13. Sturdy Construction-WEIBERfurnaces are built with robustness to withstand stress and strain, giving it long life and ability to perform in extreme stress environments.
  1. Profile microprocessor based controller.
  2. HMI+PLC based controller
  3. Temperature chart recorder
  4. Provision for printer
  5. RS 232/485 port.
  6. Open and close updated through mobile network.
  7. Extra thermocouple
  8. Tongs & gloves

WEIBER muffle furnaces are Light weight with ceramic wool insulation (instead of Brick insulation). The outer casting is made of double walled thick PCRC sheet, duly painted with attractive stove enamel. The inner casing is made of alumina block/ceramic wall (as per temperature).The unit is provided with single doors (flap type, lift type, single side opening). This door is provided with magnetic door closer. This door is provided with lock and key arrangement.

Heating:

Heating elements are made of kanthal wire, silicon carbide rod, and molybdenum silicide rod depending upon the temperature.

Temperature Control:

The temperature inside our muffle furnaceis controlled through PID controller

Temperature Range:

Temperature range of our standard furnace is 900°C-1800°C.

Voltage:

To work on 220/230V A.C. supply.

It have mainly three parts; electronic control unit, inner chamber and insulation. The furnace chamber is heated by electric resistance elements and is insulated with ceramic fiber insulation. The controller is located under the furnace chamber and is well insulated from the heat generated in the furnace chamber. A door safety switch removes power to the heating elements whenever the furnace door is opened. The temperature is controlled by one of three types of controllers

  1. WEIBER muffle furnace for temperature range: 900-1200°C (kanthal wire heating)
  2. Working sizes (customizable)

    Muffle size (DxWxH)mm

    temperature

    225x100x100

    900,1100,1200°C

    250x125x125

    900,1100,1200°C

    300x125x125

    900,1100,1200°C

    300x150x150

    900,1100,1200°C

    300x200x200

    900,1100,1200°C

    350x175x125

    900,1100,1200°C

    375x175x175

    900,1100,1200°C

    325x150x200

    900,1100,1200°C

    475x175x175

    900,1100,1200°C

    Heating element

    Kanthal A-1

    Temperature accuracy

    +/- 1oC

    Power supply

    230V/50Hz (1 phase ,3 phase as desired)

    Connected Load

    As per dimension

    Thermocouple

    K type

    Temperature Controller

    PID

    Display

    LCD/LED

      Safety thermostats



    Automatic temperature setting

    Yes

    Adjustable limits

    Yes

  3. WEIBER muffle furnace for temperature range: 1300-1500oC(Silicon Carbide Rod heating)
  4. Working sizes (customizable)

    Muffle size (DxWxH) mm

    temperature

    225x100x100

    1300,1400,1500°C

    250x125x125

    1300,1400,1500°C

    300x125x125

    1300,1400,1500°C

    300x150x150

    1300,1400,1500°C

    300x200x200

    1300,1400,1500°C

    350x175x125

    1300,1400,1500°C

    375x175x175

    1300,1400,1500°C

    325x150x200

    1300,1400,1500°C

    475x175x175

    1300,1400,1500°C

    Heating element

    Silicon Carbide Rod

    Temperature accuracy

    +/- 1oC

    Power supply

    230V/50Hz (1 phase ,3 phase as desired)

    Connected Load

    As per dimension

    Thermocouple

    S/R type

    Temperature Controller

    PID

    Display

    LCD/LED

      Safety thermostats



    Automatic temperature setting

    Yes

    Adjustable limits

    Yes

  5. WEIBER muffle furnace for temperature range: 1600-1800oC (Molybdenum Silicide heating)
  6. Working sizes (customizable)

    Chamber size(DxWxH)mm

    Temperature

    150x150x150mm

    1600°C

    200x150x150mm

    1600°C

    200x200x200mm

    1600°C

    300x200x200mm

    1600°C

    300x250x250mm

    1600°C

    400x300x300mm

    1600°C

    Chamber size(DxWxH)mm

    Temperature

    150x150x150mm

    1700,1800°C

    200x150x150mm

    1700,1800°C

    200x200x200mm

    1700,1800°C

    300x200x200mm

    1700,1800°C

    300x250x250mm

    1700,1800°C

    400x300x300mm

    1700,1800°C

    400x350x350

    1700,1800°C

    400x400x400

    1700,1800°C

    500x500x500

    1700,1800°C

    Heating element

    Molybdenum Silicide rod

    Temperature accuracy

    +/- 1oC

    Power supply

    230V/50Hz (1 phase ,3 phase as desired)

    Connected Load

    As per dimension

    Thermocouple

    B type

    Temperature Controller

    PID

    Display

    LCD/LED

      Safety thermostats



    Automatic temperature setting

    Yes

    Adjustable limits

    Yes

  1. Ignition tests
  2. Gravimetric analysis
  3. Heat treating steel parts and Gears
  4. Heat treating Gears
  5. Coal sampling
  6. Quench testing
  7. Organic and inorganic ashing
  8. Research facilities in chemistry
  9. Chemical analysis
  10. Annealing loss determination
  11. soils & aggregates cement Testing
  12. Development of coatings and ceramics
  13. Glass blowing lab
  14. Rice laboratory
  15. Plastic tensile strength test
  16. Stoneware samples firing
