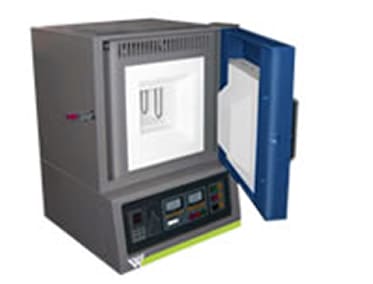

WEIBER HIGH TEMPERATURE MUFFLE FURNACE (ACM 82301)

Light weight with ceramic wool insulation (instead of Brick insulation). The outer casting is made of double walled thick PCRC sheet, duly painted with attractive stove enamel. Heating elements are made of Molybedenum silicide and backed by high temperature zirconium alumina fiber panel, which avoids loss of energy. The temperature control unit consists micro-processor based PID controller cum indicator the apparatus is complete with one pyrometer, thermocouple, silver thermal fuse, and main lead with power plug. To work on 220/230Volts AC or 400/440 Volts AC.

  • CHARACTERISTICS
  • OPTIONAL ACCESSORIES
  • TECHNICAL MATRIX
  • Molybedenum silicide heating elements in the shape of U is adopted.
  • The hearth is made up of alumina fiber panel, which is good at preserving heat. Its features include: quick temperature rising(within 40 minutes), lasting warmth and constant temperature. Compared with traditional furnace, it can save energy by 50 percent.
  • It adopts intelligent temperature controlling panel and PHD, which controls temperature precisely. It features overheat protection and programmed meter for temperature rating can be equipped.
  • Possess current estrangement, cushion exceed dynamical function and appropriative electric power measure.
  • It insulates heat by air. The low temperature of furnace body, confect creep age safeguard equipment, makes sure security.
  • Electric furnace and controller are integrated, convenient to operate.



Muffle size

Load

150 x 150 x 150 mm

4.0 KW

150 x 150 x 200 mm

5.0 KW

200 x 200 x 200 mm

8.0 KW

200 x 200 x 300 mm

10.0 KW

250 x 250 x 300 mm

14.0 KW

300 x 300 x 400 mm

20.0 KW

  • One thermocouple port centered in each control zone
  • One flanged firebrick lid with a handle
  • Support feet
  • One electrical terminal panel
  • One ten foot long power cord

  • Silicon Carbide Crucibles
  • Pouring Mechanisms
  • Crucible Ladles
  • Sight Ports
  • Additional Thermocouple Ports
  • Custom Furnace Size
  • Inert Gas Ports
  • Floor Stands
  • Custom Configuration
  • Crucible Tongs



Temperature Control

-

-

Temperature Variation (time)

± °C

2

Temperature Deviation (Spatial)

± °C

2

Readability / Set ability

°C

0.1

Temperature range***

°C

Working Temp.1600°C Maximum Temp.1700°C

Sensor Thermocouple

-

Type K

Controller

-

PID

Display

-

LED/LCD

Adjustable alarm limits (visual and acoustic)

-

Optional


Safety thermostats

-

-

Temperature variation (time)

±°C

3 (With PID Controllers only)

Sensors Thermocouple

-

Type K

Automatic setting

-

Yes

Adjustable limits

-

Yes (With PID Controllers only)


Accessories

-

-

Timer (1-999 minutes of hours)

-

Optional

Real Time Program

-

Optional

Printer Report Program

-

Optional

Serial Data Port

RS232C

Optional


Shelves

-

-

Standard/max

-

nil

Dimension w,d

mm

Modle Specific

Permitted total load

Kg

20 kg (Max Internal Size)


Accessories

-

-

Printer Report Program

-

Optional

2 x 24 characters LCD Display

-

Optional

Access Port 30 mm

-

Optional

Castors, lockable

-

Yes



Power Consumption

-

-

Nominal Power

KW

Model Specific

Nominal Voltage

V

380/440volt, 3~

Frequency

Hz

50 / 60
