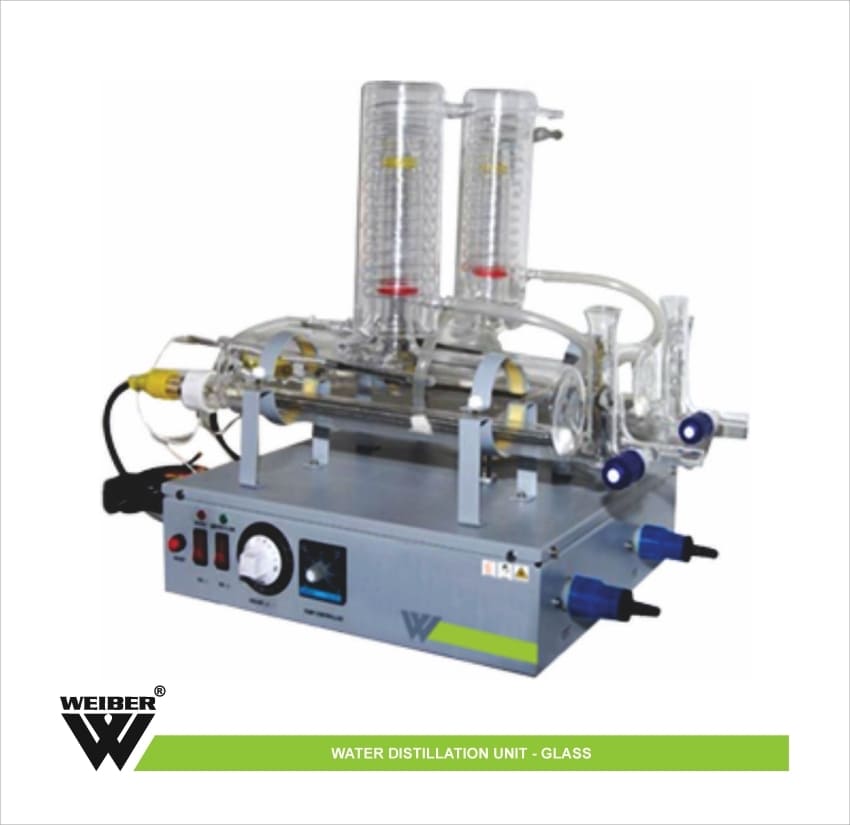

WATER DISTILLATION UNIT-GLASS

Glass Water distillation units produce highly treated and disinfected water for laboratory usage. The distillation process removes minerals and microbiological contaminants and can reduce levels of chemical contaminants.


Water distillers are neither intended to treat water that is visually contaminated nor intended to convert waste water to safe, microbiologically.

  • SPECIAL FEATURES
  • WORKING PRINCIPLE
  • CONSTRUCTION DETAILS
  • TECHNICAL MATRIX
  • APPLICATIONS
  • Demountable boiler.
  • Compact design.
  • Dual safety cutout (optional).
  • High purity,Low conductivity, Pyrogen free distillate.
  • Easy service and maintenance due to Demountable model.
  • Quartz distiller instead of glass (optional)

A water distiller works by boiling water into water vapour, condensing it and then returning it to its liquid state. It is collected in a storage container.

The process occurs in several steps:
  • Municipal or well water is manually or automatically fed into the distiller unit’s boiling chamber.
  • A heating element in the boiling chamber heats the water until it boils.
  • The steam rises from the boiling chamber. Volatile contaminants (gases) are discharged through a built-in vent. Minerals and salts are retained in the boiling chamber as hard deposits or scale.
  • The steam enters a coiled tube (condenser), which is cooled by cool water.
  • Water droplets form as condensation occurs.
  • The distilled water is collected in a storage tank. If the unit is an automatic model, it is set to operate to fill the storage tank.

The distillation apparatus consists of flask with heating elements embedded in glass and fused in spiral type coil internally of the bottom and tapered round glass, joints at the top double walled condenser with B-40/B-50 ground glass joints, suitable to work on 220 volts, 50 cycles AC supply.

Power Requirements: To work on 220/230Volts, 50 Hz single phase AC supply.

FLASK CAPACITY
  • 3 litres
  • 5 litres
  • 10 litres
  • Customizable flask capacities according to requirement.
    Parameters Values
    Output 3 lit/5tr/10 ltr/hr
    Distilled Water Quality
    Conductivity (using raw water) 3.0-4.0 x 10 -6S/cm
    Conductivity (using treated water) 1.5-2.0 x 10 -6S/cm
    PH 5.5 - 6.0
    Distillate Quality Pyrogen free
    Electrical Power 220/240 Volts, 50 - 60 Hz, Single Phase,
    3 KW Silica heater
    Cooling water reqd 1-2 lit/min
    Min. Pr. 3 p.s.i
    Weight 8-16 kgs (app)-Model Specific

Optional Accessories:

Automatic Low Water Level Cut-off Device, in case water supply is stopped Special grade rubber tubing (coil of 10 meters)

For Distillation of Water (General & Lab Use)
