Double Walled Water Bath
  1. Home
  2. Bath & Chiller
  3. Bath
  4. Double Walled Water Bath (Acm-54001- Q)
Double Walled Water Bath Exporters
  • Double Walled Water Bath Manufacturers

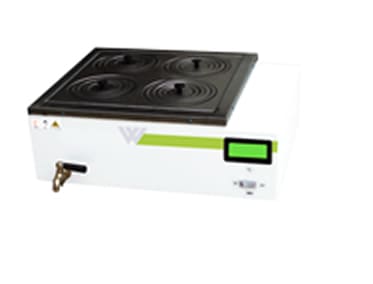

DOUBLE WALLED WATER BATH (ACM-54001- Q)

We are manufacturers of water bath equipments in India since 1990. Our water baths are widely used for day to day bacteriological and varied laboratory applications requiring incubation as well as general tests and procedures in variety of research and testing laboratories. Apart from that, these water baths have a variety of usages in tissue culture applications, enzyme reaction studies, growth observation studies, fermentation analysis and various other general and specialized applications in various laboratories.

We specialize in both standard and customized models, specifically designed to meet the challenging demands of various scientists for individual and specialized research applications.

Over a short period of time Weiber brand have been established as reliable exporters of Water bath in India, catering to the vast markets in South East Asia, Middle East, Africa and Europe.

Apart from that we are supplying our water bath in India, catering to a variety of customers ranging from Defence Installations, Research Laboratories, Educational Institutes and various R& D laboratories of leading national and multinational companies.

  • SALIENT FEATURES
  • CONSTRUCTION
  • HEATING
  • TEMPERATURE RANGE
  • FRONT PANEL
  • TECH. MTX. FOR CIRCU. W. BATH
  • CIRCU. SYSTEM FOR WATER BATH
  • FEATURES
  • Versatile usage.
  • Ergonomic Design
  • Energy Efficient
  • Long life
  • Low Maintenance
  • Calibration And Protocol Documentation

Our water baths are double walled convection heated units. Outer body of our water baths are constructed out of thick PCRC steel sheet, duly pre-treated with primers for rust proofing and painted with air drying paint/stove enamel/powder coating. The inside chamber of the unit is made of heavy gauge stainless steel sheet of grade ss-304. The unit is provided with top opening cover, made of stainless steel with steel concentric rings. The unit is provided with one stainless steel rack to hold six/twelve flasks.

Indirect heating system is provided in our water bath, comprising of air heaters made of high grade Kanthal A-1 wires of suitable wattage. The temperature is evenly distributed throughout the chamber through natural water convection mechanism, ensuring a very good temperature sensitivity.

Temperature range of our standard water bath models are 5°c ambient to 90° c. However we have the capacity to modify the same to suit the individual specialized requirements of our customers.

Temperature Sensitivity:

Temperature inside our water bath are controlled with a sensitivity of + 0.5° c or better.(With PID Controller)

Front panel of our water bath comprises of on/off switches heating and mains indicator lamps and temperature controller.

    Temperature Control - -
    Temperature Sensitivity ± °C 0.5 or better
    Spatial Deviation In Temperature ± °C 0.5 or better
    Readability °C 0.1
    Temperature range °C 5°C above ambient to 90°C (Standard)
    Temperature Sensor - PT-100
    Temperature Controller - Solid State digital Controller/ PID optional
    Display - LED/LCD
    Adjustable alarm limits - Optional With PID controller only

    Safety thermostats - -
    Temperature variation Adjustments ±°C 3
    Temperature Sensors - PT-100
    Automatic temperature setting - Yes (With PID Controllers only)
    Adjustable limits - Yes (With PID Controllers only)

    Accessories - -
    Timer (999 mins) - Optional
    Program (Real Time) - Optional
    Data Acquisition Program - Optional
    Serial Port (Printer) RS232C Optional
    Inspection window in door - Optional

    Shelves - -
    Standard - 01
    Internal Dimensions mm Standard
    Maximum Permitted load per shelf Kg 300mm x 250mm x 100mm (6 holes) 8 ltr 355mm x 405mm x 100mm (12 holes) 15 ltr

    Accessories - -
    Printer Report Program - Optional
    2 x 24 characters LCD Display mm Optional
    Access Port 30 mm - Optional

    Power Consumption - -
    Nominal Power W 500-650
    Nominal Voltage V 220-230 Volts, 50 Hz Single Phase
    Frequency Hz 50

Note: The above mentioned sizes are of our standard water bath. However we are fully capable to cater to the demand of any customized size for any special application.

This is unique module which can be incorporated with our water bath to log in temperature and environment related data with a help of a data logger unit which has a pc connectivity by means of RS232C interface. This data is then analyzed and formatted with the help of our unique user friendly analysis software to enable the user to get a formatted and analyzed reports of various inputs during the full operation cycle of the equipment. This is an ideal module for pharmaceutical laboratories, process control applications and high research projects where maintaining a viable record of the performance of the equipment is very essential.


  • Our system incorporates multiple Devices such as in line process Indicators, environment scanners and temperature or humidity controllers.
  • Provides Astech cable for direct interface to any dot matrix or laser printer for online or offline data records printing
  • It has Bulk data storage capacity with high data retention life.
  • Facility to obtain nicely formatted print our of the logged data or records with proper headers.
  • Our system provided facility to program recording interval with various options to suit individual requirements.
  • It is provided with the feature to adjust or select baud rate for any serial communication port.
  • Our system is provided with user friendly custom developed software which obtains and analyze the data and facilitates the user to generate reports and graphs etc.
