- Corrosion free exterior and interior
- Designed for long storage of blood
- Environmental friendly CFC free cooling
- Special design ensuring best hygiene
- Digital temperature indication
- Micro processor based temperature control
- Audio visual alarm for high and low temperature
- PUF insulation
- Reliable
- Energy Efficient
- Sturdy Construction
- Low Maintenance
- Light Weight

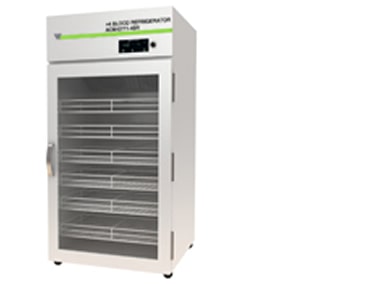

Blood bank refrigerators is double walled cooled units. Outer body of our blood bank refrigerators are constructed out of thick m.steel/ aluminum sheets, painted with long lasting stove enamel or elegantly powder coated. The inner chamber is made of heavy gauge stainless steel sheet of SS-304 grade or anodized aluminum sheet or G.I. (as per the customer’s requirements).
The 100 mm gap between the walls is filled high grade poly uretherane insulation, which ensures maximum thermal efficiency .
Outer Panels:
The outer panels of all our blood bank refrigerators are made of galvanized sheets having a superior bacteria resistance film coating for greater hygiene.
Interior Construction:
The interior of our blood bank refrigerators are constructed of high grade stainless steel sheets of grade SS-304, thus making it easier to clean and ensure greater stability and life.
Door:
The doors are connected by very sturdy chrome plate hinges and fitted with hard chrome plated lubricated latches for opening the door. The doors are made of galvanized steel sheets, lined with stainless steel for extra protection and long life. All the doors are fitted with high quality neoprene rubber gaskets for air tight fittings.
Floor:
The floor of our blood bank refrigerators are constructed out of hardened and reinforced steel sheets containing spills for easy cleaning and hygiene.
Castors:
The unit is provided with very sturdy castors
Individual Locks:
The chambers of the refrigerators are provided with individual multi channel lock for safety and security.
An energy efficient cooling unit is installed in our mortuary chambers. We use ISI marked high end CFC free compressors of Kirloskar/Tecumseh make, conforming to latest international standards and guidelines.
Temperature range of our standard blood bank refrigerators models are 2° c to 4° c. However we have the capacity to modify the same to suit the individual specialized requirements of our customers.
Temperature Control:
The temperature inside our blood bank refrigerators is controlled through programmable micro-processor based temperature controller cum indicator.
Temperature Sensitivity:
Temperature inside our seed germinator are controlled with a sensitivity of + 1° c or better.
Audio Visual Temperature alarm:
An audio visual temperature alarm is provided in the unit for protection during temperature fluctuations.
Our blood bank refrigerators are provided with door operated illumination system comprising of fluorescent lights,
Front panel of our units comprises of on/off switches cooling and mains indicator lamps, temperature controllers and voltmeters.
| Temperature Control |
- |
- |
| Temperature Sensitivity |
± °C |
1 or better |
| Spatial Deviation In Temperature |
± °C |
1 or better |
| Readability |
°C |
0.1 |
| Temperature range |
°C |
2°C to 4°C |
| Temperature Sensor |
- |
PT-100 |
| Temperature Controller |
- |
Solid State digital Controller/PID optional |
| Display |
- |
LED/LCD |
| Adjustable alarm limits |
- |
Optional With PID controller only. |
| Safety thermostats |
- |
- |
| Temperature variation Adjustments |
- |
3 (With PID Controllers only) |
| Temperature Sensors |
- |
PT-100 |
| Automatic temperature setting |
- |
Yes (With PID Controllers only) |
| Adjustable limits |
- |
Yes (With PID
Controllers only) |
| Air Circulation |
- |
Forced |
| Refrigerent |
- |
R134A Non CFC |
| Accessories |
- |
- |
| Program (Real Time) |
- |
Optional |
| Data Acquisition Program |
- |
Optional |
| Serial Port (Printer) |
RS232C |
Optional |
| Inspection window in door |
- |
Optional |
| Water Reservoir |
litres |
18 ltr |
| Capacity |
- |
- |
| Standard |
- |
50/110/200/250/360 bags |
| Internal Dimensions |
mm |
Model Specific |
| Maximum Permitted load per shelf |
Kg |
155kg |
| Maximum Permitted total load |
Kg |
Model Specific |
| Accessories |
- |
- |
| Printer Report Program |
- |
Optional |
| 2 x 24 characters LCD Display |
- |
Optional |
| Access Port 30 mm |
- |
Optional |
| Castors, lockable |
- |
Yes |
| Power Consumption |
- |
- |
| Nominal Power |
W |
950 - 1450 |
| Nominal Voltage |
V |
220-230 Volts, 50 Hz Single Phase |
| Frequency |
Hz |
50 / 60 |
Data Acquisition and Control System for Blood Bank Refrigerator
Universal Digital Data Recorder with Computer
This is unique module which can be incorporated with our blood bank refrigerators to log in temperature and environment related data with a help of a data logger unit which has a pc connectivity by means of RS232C interface. This data is then analyzed and formatted with the help of our unique user friendly analysis software to enable the user to get a formatted and analyzed reports of various inputs during the full operation cycle of the equipment. This is an ideal module for pharmaceutical laboratories, process control applications and high research projects where maintaining a viable record of the performance of the equipment is very essential.
- Our system incorporates multiple Devices such as in line process Indicators, environment scanners and temperature or humidity controllers.
- Provides Astech cable for direct interface to any dot matrix or laser printer for online or offline data records printing
- It has Bulk data storage capacity with high data retention life.
- Facility to obtain nicely formatted print our of the logged data or records with proper headers.
- Our system provided facility to program recording interval with various options to suit individual requirements.
- It is provided with the feature to adjust or select baud rate for any serial communication port.
- Our system is provided with user friendly custom developed software which obtains and analyze the data and facilitates the user to generate reports and graphs etc.
