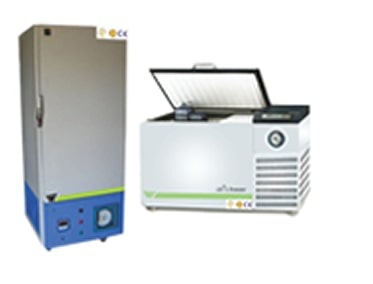

Deep Freezer Vertical

Material Of Construction: Castor wheel mounted cabinet is double walled with inner chamber & storage shelves of Stainless steel sheet of grade SS 304 and outer wall of MS sheet epoxy powder coated with ultra thin vacuum insulation.

Temperature Range : -25 degree C with accuracy of +/- 0.5oC (CFC Free)

Temperature Control : The temperature inside the Deep Freezer is controlled by intelligent programmable temperature controller and indicator. This controller is based on the microcontroller nano watt technology and its ergonomic design suits for any specific requirement of the freezer like Datalogger facility, Thermal and DOT Matrix interface, direct data load facility in computer office automation software like MS-Word and Excel and many other features listed in the specification bellow.

Cooling Mode: This LED indicates the cooling system on condition and it light up when the set temperature is lower than the ambient temperature.

Temperature Alarm: This LED indicated the extreme Ambient condition and the temperature failure condition.

Audio Alarm : This Alarm indicates the visual alarm and indiactes any failure and Temperature overshoot conditions.

Door Open : Visual indication with door open conditions.

A.C Power failure : This visual indicator light up when the mains power fail and the system working in the battery mode.

Low battery indicator : This LED indicates the battery backup status, This LED indicates when the battery charge capacity available at 25% of the total charge.

UP : Count up key.

SET : This is a set button to set any parameter on the screen, by pressing of this key a cursor blink on the corresponding parameter, So you can select any desired parameter and use UP and Down key to set specific value/setting.

Down : Down count key.

ESC : This key is used to exit from any menu, you are working right now.

Print/Data download : This key is used to transfer the stored data into the printer or Data download facility in the computer MS Excel/Word and Hyperterminal software.

Display Unit : This unit is a user intertractive interface system for easy operation and it displays the parameter like DATE, TIME, Ambient Temperature, Compressor ON Delay Time, Read and Set Temperature.

Temperature Display : This seven segment display indicates the read temperature value inside the chamber.

DATE and TIME : From normal operational mode, press SET key ones,

Insulation : The gap of 100 mm between the outer and the inner wall is filled with ultra thin vacuum insulation.

Air circulation: Triple walled back of unit is fitted with two air circulation fans for maintaining temperature uniformly throughout the chamber

Doors: The double walled door is made of stainless steel grade SS 304. Lock and Key arrangement is provided in the double walled outer door.

Illumination: Unit is fitted with door operated illumination lamp inside the chamber.

40 watt/120 volt replacement light bulb fits inside the illumination cavity of the chamber.

Refrigeration Unit: Refrigeration unit is formed by ISI marked compressor/cooling kit. Of Kioloskar Copeland or Tecumseh.

Front Panel: The front panel is provided with separate indicator lamps for main heating and incoming voltage. Digital Temperature controller cum Indicator and voltmeter.

Shelves: The unit is supplied with three shelves of stainless steel sheet.

Voltage: To work on 220/230V A.C. supply.

Capacity: 100 / 218 / 328 / 388 / 538 / 828 Liters
